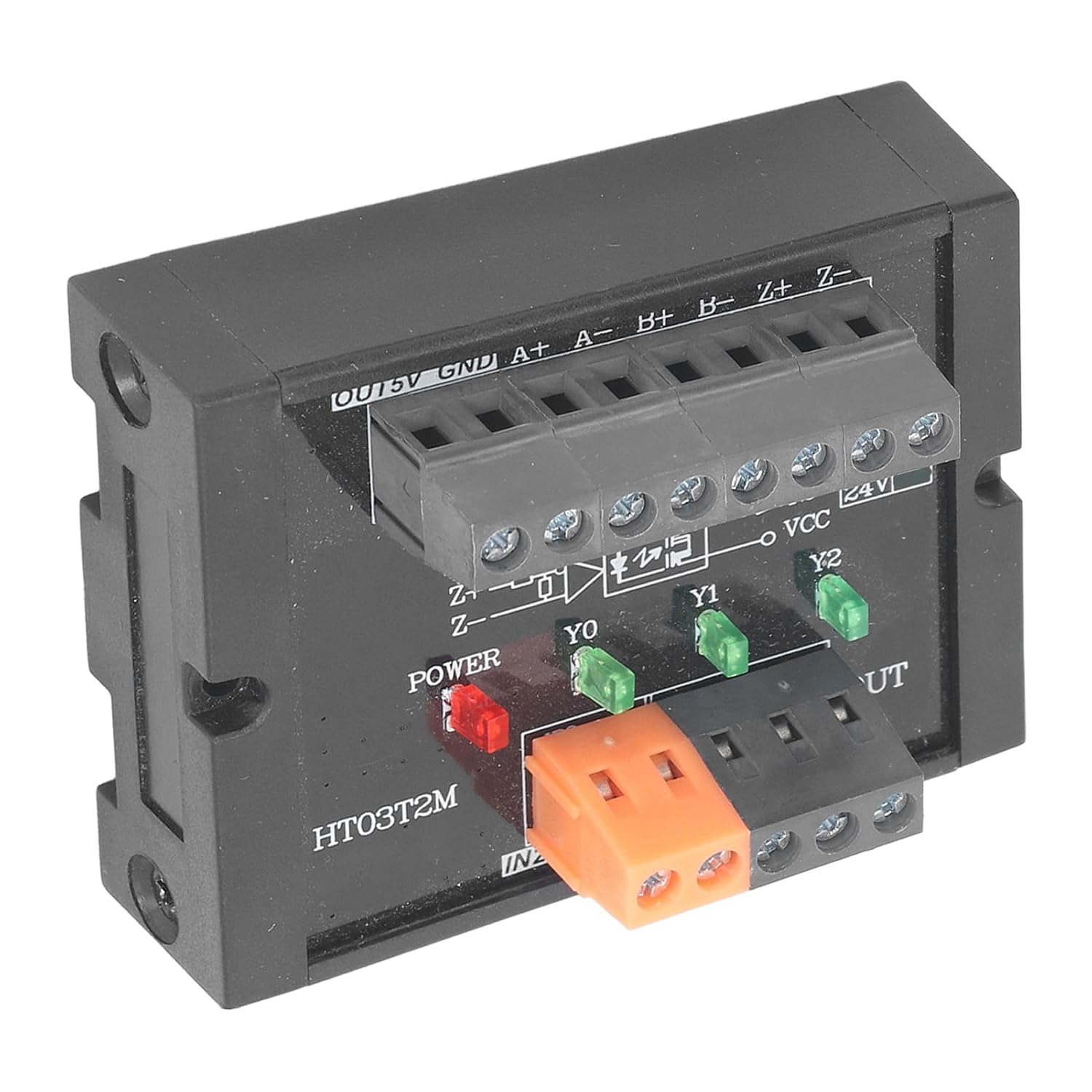

NPN PNP Module, Converter TTL EIA422 423 Input Single Ended 3 Channel HTL TTL Output Quick Repsonse for Counter (5V)
Product details
| Management number | 231449545 | Release Date | 2026/06/18 | List Price | US$12.48 | Model Number | 231449545 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1. Smart Conversion: This converter module can convert TTL, EIA422, 423 differential input to NPN, PNP, HTL, TTL output signal. 2. in Work: High conversion efficiency, quick response, supports for screw or rail installation, with 4 level protection. 3. Good Application: Used to convert the differential of the encoder and scale into a single ended for PLC high speed counter. 4. Practical to Use: Can also be applied to NPN to PNP, PNP to NPN level conversion, which will better satisfy your working needs with high performance. 5. Quick to Install: Light in weight and compact in size as well, the 3 channel converter is easy to install between the encoder and counter. Spec: Item Type: Converter Module Input Signal: TTL, EIA422, 423 differential signal. Output Signal: NPN, PNP, HTL, TTL. If a 5V output is required, a 2.2K-1/4w color ring resistor can be connected. Conversion Ffrequency: 0-2MHz, response speed tpHL/tpLH=500ns maximum. Input Current: 4-20mA Output Current: ± 2.5A maximum , it is recommended that the load current should not exceed 0.6A. Installation: Screw or rail installation Working Temperature: -40~100℃. Relative Humidity: Protection: Level 4 Protection How to Use: Simply connect between the encoder and counter. packing list: 1 xSignal Converter Module
- Practical to Use: Can also be applied to NPN to PNP, PNP to NPN level conversion, which will better satisfy your working needs with high performance.
- in Work: High conversion efficiency, quick response, supports for screw or rail installation, with 4 level protection.
- Good Application: Used to convert the differential of the encoder and scale into a single ended for PLC high speed counter.
- Smart Conversion: This converter module can convert TTL, EIA422, 423 differential input to NPN, PNP, HTL, TTL output signal.
- Quick to Install: Light in weight and compact in size as well, the 3 channel converter is easy to install between the encoder and counter.
| ASIN | B0DGNVR3Z8 |
|---|---|
| Model | CCYLEZ841bvpf2as-11 |
| Brand Name | CCYLEZ |
| Part Number | CCYLEZ841bvpf2as-11 |
| Manufacturer | CCYLEZ |
| Item Type Name | Analog to Digital Converters |
| Included Components | No |
